Productdetails:
|
| Naam: | de batterij van lifepo4 48v 200ah | Nominale spanning:: | 51,2V |
|---|---|---|---|
| Nominale Capaciteit:: | 300 Ah | Nominale energie:: | 15360Wh |
| Dimensie:: | 660*820*140mm | Omvormer: | Geïntegreerd of apart |
| Nominale capaciteit: | 200Ah~600Ah | Krachtige communicatie: | CAN/RS485/RS232/DROOG CONTACT |
| Back-upvermogen: | Biedt back-upstroom tijdens stroomuitval | Modelnr: | Krachtzon |
| Efficiëntie: | Tot 98% | Ontladingssnelheid: | 0,5~1C |
| Model: | Verschillende modellen beschikbaar | Omvormer type: | Hybride |
| Cyclus leven: | Tot 10.000 cycli | Nominale energie: | 10240Wh |
| Garantie: | 10 jaar | Productmodel: | KM48V100B Accu voor thuis |
| Nominale spanning: | 51,2 V 400 Ah batterij | Toezicht: | Monitoring en controle in realtime |

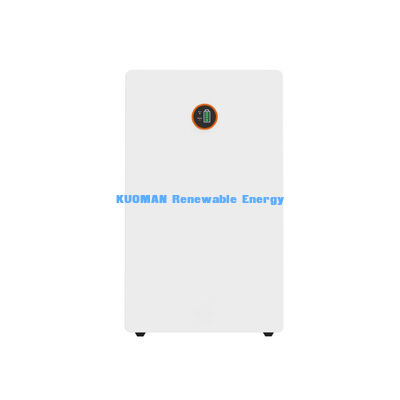

2025 Best Selling 48V 200Ah LiFePO4 Battery for Residential Power Demand with and Long Life and 100% BMS Protection
48V 200Ah LiFePO4 Battery provides 10kwh to 30kwh power for home energy storage demand. You can charge itby solar panels, diesel generators; This 48V lithium battery adopts LiFePO4 technology,which has the highest safety with CE, RoHS, UL certificates and the longest life morethan 8000 cycles; and its management system provides comprehensive protection aswell as real-time monitoring.
BMS Features
Over charging protection
Over discharge protection
Over current protection
Temperature protectionShort circuit protection
Real time monitoring of each cell
Auto balance between battery cells
| Product Model | KM48V200P2 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10240Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 56.2V |
| Max Charging Current | 200A |
| Standard Charging Current | 100A |
| Discharging Cut-off Voltage | 45.6V |
| Discharging Current | 10A |
| Max Continous Discharging Current | 200A |
| Peak Discharging Current(3S) | 400A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit/etc |
| Battery Size | 442*820*142mm |
| Communication | CAN/RS485/RS232/Bluetooth(optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
| Note | Still more models of 300Ah, 200Ah,150Ah,280Ah, 50Ah,25Ah |
