215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations

215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations
215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations 215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations

Grote Afbeelding :  215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations

Productdetails:
Plaats van herkomst: China
Merknaam: KUOMAN
Certificering: CE, UL
Modelnummer: KMC50DP2
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: based on the specification demands
Verpakking Details: Standaard exportverpakking
Betalingscondities: T/T
Levering vermogen: 10 pc's/maand
Contact

215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations

beschrijving
Uitgangsfrequentie: 60 Hz/50 Hz Panel-efficiëntie: 22%
Serie veiligheidscategorie: 15A Module -afmetingen: 1722x1134x30mm
Junctiebox: 25A, IP68 Temperatuurbereik: -40°C~+85°C
Kortsluitingstroom: 13.88-14.22A Huidig: 12,5 ampère
Celgetal: 144 monokristallijn Voorste glas: 3,2 mm gehard
Totale capaciteit: 107,52 kWh Nominale spanning: 384 V
Markeren:

215kWh outdoor energy storage cabinet

,

768V commercial energy storage system

,

microgrid renewable energy storage cabinet

215kWh Outdoor Energy Storage Cabinet 768V | Microgrid and Renewable Energy Remote Off-Grid Locations
The 215kWh Outdoor Energy Storage Cabinet is designed for microgrid applications and renewable energy systems in remote off-grid locations, providing reliable energy storage and management solutions.

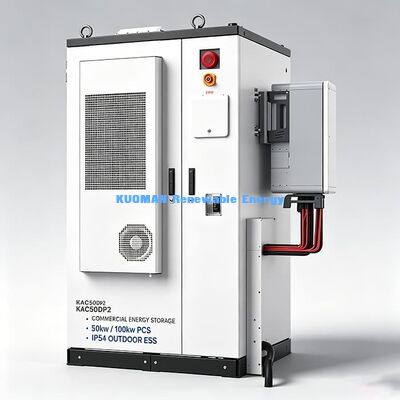

215kWh Outdoor Energy Storage Cabinet installation and overview
Product Features
Versatile PV & Grid Function
  • Supports DC/AC coupled solar systems, max 100kWp PV input with 4 built-in MPPT trackers
  • 10ms seamless on/off-grid switching, no extra switching hardware, direct backup load output
  • Generator input compatible, max 97.5% efficiency, adjustable power factor
Safe & Reliable Outdoor Design
  • 280Ah LFP cells, high energy density, 90% DoD & long cycle life
  • Complete fire safety: CO detection, sound-light alarm, explosion vent, fire water injection port
  • Full multi-layer electrical protection; IP54 battery cabinet + IP65 inverter, C4 anti-corrosion
  • Wide working temperature: -30℃~+50℃ battery, -25℃~60℃ inverter, global safety certifications
Smart Integrated Energy Management
  • Self-developed BMS & EMS for peak shaving, self-consumption & TOU arbitrage
  • 24/7 cloud remote monitoring, Ethernet/CAN/MODBUS TCP/IP communication support
Compact & Easy Installation
  • All-in-one integrated cabinet, small footprint & space-saving
  • Active air conditioner cooling, total weight under 1.5 tons, outdoor ready
  • Stable operation up to 3000m (battery) / 4000m (inverter) altitude
Key Technical Parameters
Component Specifications
Battery System (BC107DE2)
  • Chemistry: Lithium Iron Phosphate (LFP) - safe, long cycle life, non-flammable
  • Total Capacity: 107.52 kWh (6 modules * 17.92 kWh)
  • Nominal Voltage: 384 V (operating range: 342-432 V)
  • Max Charge/Discharge Rate: 0.5C
  • Depth of Discharge (DoD): 90%
  • IP Rating: IP54 (outdoor installation)
  • Corrosion Resistance: C4 level (suitable for coastal/industrial environments)
  • Operating Temp: -30°C to +50°C
  • Cooling: Air conditioner (stable performance in extreme climates)
  • Certifications: UN38.3, MSDS, IEC 62040, IEC 62477, IEC 62619, IEC 63056, IEC 61000-6-2/4
Hybrid Inverter (KAC50DP2)
  • PV Input: 100 kWp max, MPPT voltage 250-950 Vdc
  • Battery Compatibility: 200-950 Vdc (rated 250-800 Vdc), 55 kW max DC power
  • AC Output: 50 kW rated (55 kVA max), grid-tied & backup power (50 kW backup)
  • Efficiency: Up to 97.5%
  • IP Rating: IP65 (dust & water resistant)
  • Operating Temp: -25°C to 60°C (derated above 45°C)
  • Cooling: Intelligent air cooling
  • Communication: RS-485/CAN, Modbus TCP/IP
Application Scenarios
  • Commercial & Industrial Facilities: Factories, warehouses, shopping malls, and office buildings for peak shaving, demand charge management, and backup power.
  • Solar PV Plants: Utility-scale and distributed solar installations to store excess solar energy for grid stability and time-of-use (TOU) arbitrage.
  • Microgrids: Remote communities, mining sites, and islands to integrate renewable energy, gensets, and energy storage for reliable off-grid power.
  • Critical Infrastructure: Hospitals, data centers, and telecom towers to ensure uninterrupted power supply during blackouts.
  • Agricultural & Rural Applications: Irrigation systems and farm operations to store solar energy for off-peak use and reduce reliance on diesel generators.
Energy storage cabinet in commercial and industrial applications
Frequently Asked Questions
Q1: What is the main benefit of this 215kWh C&I energy storage system for businesses?
A1: It helps cut electricity expenditure via peak shaving & load shifting, stores on-site solar power for self-use, and offers reliable backup power to avoid production losses caused by power outages.
Q2: Can this ESS work with existing solar panel systems?
A2: Yes. Equipped with standard communication protocols, the 768V 215kWh energy storage system can be seamlessly matched with most mainstream solar inverters for PV+ESS hybrid systems.
Q3: Is this energy storage cabinet suitable for outdoor installation?
A3: Yes. The unit adopts an outdoor-grade integrated cabinet with built-in industrial air conditioner, effective temperature control, dustproof and waterproof performance, designed for outdoor deployment.
