Data Center Rack Battery 48V | LiFePO4 200Ah Solution

Data Center Rack Battery 48V | LiFePO4 200Ah Solution
Productdetails:
Plaats van herkomst: China
Merknaam: KM
Modelnummer: KM 48V 200Ah thuisaccu
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: USD1-100/pcs
Verpakking Details: standaard internationale kartonnen verpakking
Levertijd: algemene twee weken, meer hoeveelheid gebaseerd op exacte hoeveelheid
Levering vermogen: 10000 stks/maand
Contact

Data Center Rack Battery 48V | LiFePO4 200Ah Solution

beschrijving
Nominale spanning: 51,2V Nominale capaciteit: 200 Ah
Nominale energie: 10240Wh Dimensie: 442*820*142mm
Maximale laadstroom: 100A Maximale ontlaadstroom: 100A
Celtype: LiFePO₄-cel Laadvergingsspanning: 58,4V
Standaard laadstroom: 40A Het lossen van Afgesneden Voltage: 40V
Piekontladingsstroom: 400A Netto gewicht: 79 kg
Markeren:

48V LiFePO4 rack battery

,

200Ah data center battery

,

home battery storage solution

Data Center Rack Battery 48V | LiFePO4 200Ah Solution

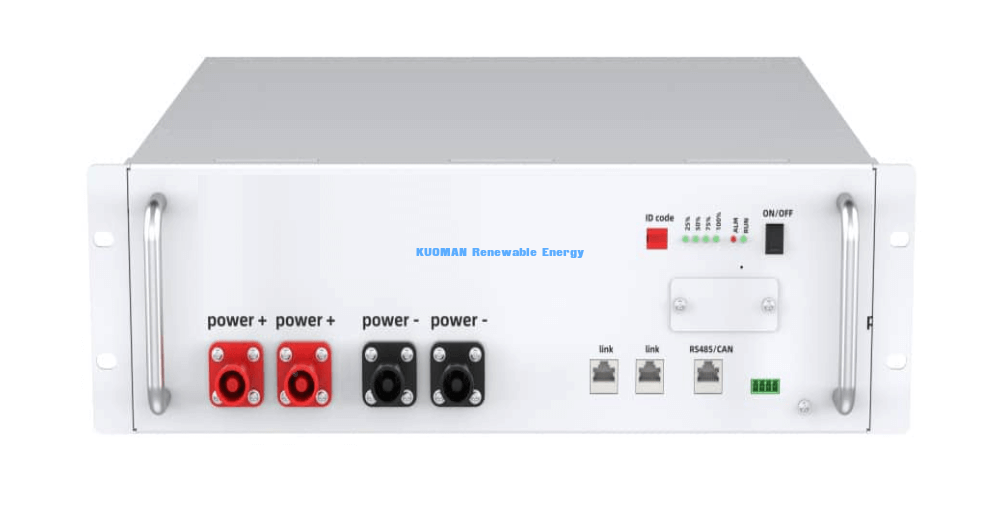

AK POWER Rack Mounted Storage Battery is a cutting-edge energy storage solution engineered for telecom base stations, data centers, industrial backup systems, and renewable energy (solar/wind) integration. Available in 3 models—AK-48V200R​ (200Ah), AK-48V100R​ (100Ah), and AK-48V50R​ (50Ah)**—it delivers reliable, efficient, and safe energy storage with rack-mountable design for seamless deployment in server racks or industrial enclosures.
KM 48V 200Ah LiFePO4 Battery wall-mounted installation viewHome Battery System Features
  • Flexible Capacity Options: Choose from 50Ah, 100Ah, or 200Ah to match your energy demands (e.g., small telecom sites → 50Ah; large data centers → 200Ah).
  • Advanced LiFePO4 Cell: Utilizes lithium iron phosphate (LiFePO₄) technology for long cycle life​ (≥2000 cycles), high thermal stability, and enhanced safety (no fire/explosion risks).
  • Intelligent BMS Protection: Built-in Battery Management System (BMS) safeguards against overcharging, over-discharging, over-voltage, over-current, and short circuits.
  • Versatile Communication: Supports CAN/RS485/RS232 protocols + optional Bluetooth for real-time monitoring (via LCD/touch screen) and remote management.
  • Wide Temperature Adaptability: Operates in -20℃~65℃ (discharging)​ and 0℃~45℃ (charging), ideal for harsh environments (e.g., outdoor telecom towers, industrial plants).
  • Rack-Mountable Design: Compact dimensions (e.g., AK-48V200R: 580×440×240mm) enable easy integration into standard server racks, saving space.
Why Choose Us? (Competitive Advantages)
  • Proven Reliability: LiFePO₄ technology + rigorous BMS testing ensures 99%+ uptime and 2000+ charge-discharge cycles.
  • Global Compliance: Certified with UN38.3, MSDS, CE, IEC, and transport reports—approved for worldwide shipping (sea/air/rail).
  • Fast Delivery: 5–12 days lead time for orders ≤100pcs, enabling quick project deployment.
  • Customization Support: Tailor capacity, communication protocols, or display options to meet unique project needs.
  • 24/7 Technical Support: Expert team for installation, maintenance, and troubleshooting—minimizing downtime.
Technical Specifications
Specification AK-48V200R AK-48V100R AK-48V50R
Nominal Voltage 48V/51.2V 48V/51.2V 48V/51.2V
Nominal Capacity 200Ah 100Ah 50Ah
Cell Type LiFePO₄ Cell LiFePO₄ Cell LiFePO₄ Cell
Charging Cut-off Voltage 58.4V 58.4V 58.4V
Standard Charging Current 40A 20A 10A
Continuous Charging Current 100A 50A 25A
Charging Temperature 0℃~45℃ 0℃~45℃ 0℃~45℃
Discharging Cut-off Voltage 40V 40V 40V
Discharging Current 200A 100A 50A
Peak Discharging Current (3S) 400A 200A 100A
Discharging Temperature -20℃~65℃ -20℃~65℃ -20℃~65℃
BMS Protection Overcharge/over-discharge, Over-voltage/over-current, Short Circuit, etc.
Display LCD Display/Touch Screen
Battery Size (mm) 580*440*240 455*480*160 440*350*155
Package Size (mm) 680*520*420 570*560*265 455*460*360
Net Weight 79kg 44kg ~25kg
Gross Weight 90kg 46kg ~27kg
Communication CAN/RS485/RS232, Bluetooth (Optional)
Certificate UN38.3/MSDS/Sea/Air Transport Report/CE/IEC
Shipping Method Sea/Air/Railway
Delivery Time 5-12 days (Qty ≤100pcs)

FAQ (Frequently Asked Questions)​

  • Q1: What’s the cycle life of this battery?​
    A: Our LiFePO₄ battery offers ≥2000 charge-discharge cycles (at 80% DOD), ensuring long-term value.
  • Q2: Can it work in extreme temperatures?​
    A: Yes! It discharges in -20℃~65℃ and charges in 0℃~45℃, suitable for harsh environments (e.g., outdoor telecom towers).
  • Q3: What’s the shipping time?​
    A: For orders within 100pcs, delivery takes 5–12 days (via sea/air/railway).
  • Q4: Is customization available?​
    A: Yes! We offer custom capacity, communication protocols, or display options—contact us for details.
  • Q5: How to monitor the battery?​
    A: Use the LCD/touch screen for real-time status, or enable Bluetooth (optional) for remote monitoring via mobile apps.
